PS Foam Sheet Extrusion Line

Click here for Russian Language translation.
Click here for Spanish Language translation.
PS Foam Sheet Extruder uses a tandem screw technology to produce fine-blocked cell-structured extruded Polystyrene foam sheet with high strength and a pearly and even surface, in a continuous roll, from Polystyrene injecting an eco-friendly blowing gas and additives. It has a user-friendly operating system with Inverter controlled driving, Digital Temperature control and Hydraulic screen changer.
Product:


PS Foam Sheet Extrusion Line


PS Foam Sheet Extrusion Line


detailed images:

Applications:
A. Characteristics Of Product
  • Glossy Surface
  • Excellent Cushioning And Insulating Effect
  • Moisture-Proof
  • Anti-Corrosion By Chemicals
  • Printable, foldable, embossable, moisture and water resistant, low stream and air permeability.
  • Tasteless, Odorless And Non-Toxic
B. Applications Of Product
  • External packing material for food, fruit, cosmetics and internal cushioning.
  • Packaging for high-grade goods, industrial machinery parts.
  • Container for pharmaceutical & medical products.
  • Various types of lunch boxes, trays and containers
  • Toy and educational materials due to easy-fabrication
  • Advertising and stationary board etc.
PS Foam Sheet Extrusion LinePS Foam Sheet Extrusion Line PS Foam Sheet Extrusion LinePS Foam Sheet Extrusion Line PS Foam Sheet Extrusion LinePS Foam Sheet Extrusion Line PS Foam Sheet Extrusion LinePS Foam Sheet Extrusion Line PS Foam Sheet Extrusion LinePS Foam Sheet Extrusion Line PS Foam Sheet Extrusion LinePS Foam Sheet Extrusion Line PS Foam Sheet Extrusion LinePS Foam Sheet Extrusion Line PS Foam Sheet Extrusion LinePS Foam Sheet Extrusion Line PS Foam Sheet Extrusion LinePS Foam Sheet Extrusion Line PS Foam Sheet Extrusion LinePS Foam Sheet Extrusion Line

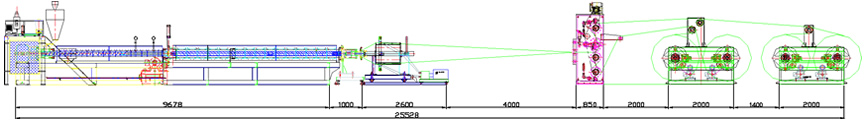

Lay-Out:


PS Foam Sheet Extrusion Line

Specifications:


Model No. RYF-90-120 RYF-100-130 RYF-120-150 RYF-130-170 RYF-150-200
Capacity (Kg/hr) 120-160 150-200 200-300 200-350 100-550
Width (MM) 600-1300 600-1300 1100
2sheets
1100
2sheets
1100
2sheets
Thickness (MM) 0.8-4.5 0.8-5.0 1.4-6.5 1.5-7.0 1.5-8.0
