PE Foam Sheet Extrusion Line

Click here for Russian Language translation.
Click here for Spanish Language translation.
PE Foam Sheet Extruder, EPE Foam Sheet Extruder produces closed find cell Polyethylene foam sheet by our unique designed Screw and Barrel system using Butane, Talc master batch and GMS(Surface Active Agent) by accumulated experience and advanced technology.

Our PE Foam Sheet Extruder can be procuded upto 35mm thickness of Polyethylene foam sheet and PE Foam Board Extruder can be produced upto 100mm thickness of Polyethylene foam board directly and continuously from unique Die.
Product:

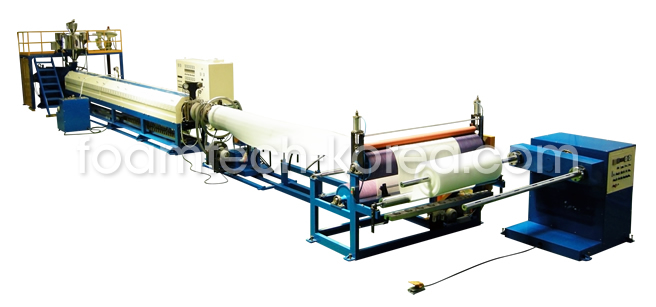

PE Foam Sheet Extrusion Line

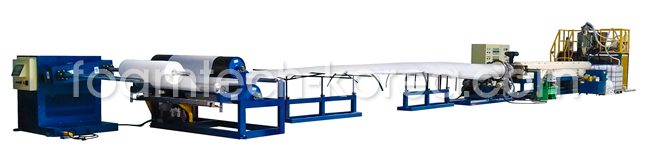

PE Foam Sheet Extrusion Line

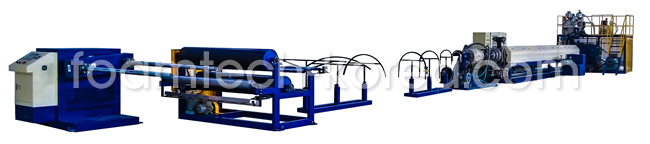

PE Foam Sheet Extrusion Line
Applications:
A. Characteristics Of Product
  • High resilience and buoyant effect.
  • Effective insulating capability
  • Low thermal conductivity
  • Negligent absorption and water permeability
  • Chemical Resistant
  • Effective and safe to handle in installation application
  • Non-toxic and environmental friendly : free of CFC, HCFC
  • Fine round closed-cell cellular structure assures
  • Excellent flexibility
  • 100% Recyclable and Reusable
B. Applications Of Product
  • External cushioning and packing material.
  • Packaging for high-grade goods, industrial electronic parts.
  • Construction materials for insulation.
  • Educational materials.
PE Foam Sheet Extrusion LinePE Foam Sheet Extrusion Line PE Foam Sheet Extrusion LinePE Foam Sheet Extrusion Line PE Foam Sheet Extrusion LinePE Foam Sheet Extrusion Line PE Foam Sheet Extrusion LinePE Foam Sheet Extrusion Line PE Foam Sheet Extrusion LinePE Foam Sheet Extrusion Line PE Foam Sheet Extrusion LinePE Foam Sheet Extrusion Line PE Foam Sheet Extrusion LinePE Foam Sheet Extrusion Line PE Foam Sheet Extrusion LinePE Foam Sheet Extrusion Line PE Foam Sheet Extrusion LinePE Foam Sheet Extrusion Line PE Foam Sheet Extrusion LinePE Foam Sheet Extrusion Line PE Foam Sheet Extrusion LinePE Foam Sheet Extrusion Line PE Foam Sheet Extrusion LinePE Foam Sheet Extrusion Line

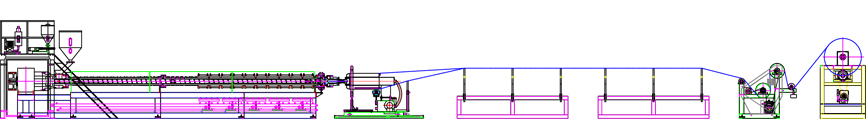

Lay-Out:
PE Foam Sheet Extrusion Line

Specifications: Single Extruder Type (PE Foam Sheet Line)


Model No. RYF-105 RYF-120 RYF-130 RYF-150 RYF-180 Tandem
Capacity (Kg/hr) 80-200 80-250 80-300 100-350 Max 460 Over 500
Width (MM) 1000-2000 1000-2000 1000-2000 1000-2000 1000-2000 1000-2000
Thickness (MM) 0.5-10 0.5-12 0.5-15 1-18 2-25 2-28
Density (Kg/m³) 15-35 15-35 15-35 15-35 15-40 13-45


Specifications: Tandem Extruder Type (PE Foam Board Line)


Model No. RYF-130/180 RYF-170/235 RYF-200/280
Capacity (Kg/hr) 250-450 500-800 550-1000
Width (MM) 300-650 500-1000 500-1000
Thickness (MM) 35-50 35-75 50-100
Density (Kg/m³) 20-35 20-35 20-40

Properties of PE Foam:


Classification Properties Unit Result
Cell Structure Density gr/㎤ 0.023
Cell Size Mm 0.28
Closed Cell Ratio % 100
Physical Properties Tensile Strength Kg/㎠ 3.4
Elongation % 140
Compression Strength 10% Kg/㎠ 0.030
20% Kg/㎠ 0.197
30% Kg/㎠ 0.787
Permanent Compression Set % 6.5
Repeated Compression Set % 5.0
Tearing Strength Kg/㎠ 2.4
Resiliency % 35
Thermal Properties Heat Distortion Temperature ℃ -80 to +80
Thermal Conductivity Kcal/mh 0.030
Heat Shrinkage % 0.4
Combustion Rate ㎝/min 6.4
Insulation   Excellent
Water Resistance Properties Water Absorption mgr/㎠ 0.03 or less
Water Vapor Transmission Rate gr/㎡hr 0.01 or less
Moisture Transmission Rate gr/㎡ 4.62
Electric Character Dielectronic Constant %(khz) 1.05
Volume Resistance Ω/㎝ 1015
Dielectronic Strength KI/㎜ 4.8
Dissipation Factor ian8(1khz) 0.0001
Other Properties Chemical Resistance   Good
Toxic Character   None
Heat Process ability   Good
Buoyancy gr/liter 880
Clarity % 45
Sound Proof Properties   Good
