Automatic Vacuum Forming Line

Click here for Russian Language translation.
Click here for Spanish Language translation.
Fully automatic vacuum forming machine integrate forming, cutting and trimming at the same time. It can be used for processing almost all kinds of plastic sheet such as PS Foam Sheet, PS, PET, PVC, HIPS, PP sheet. It adopts PLC controller and touch screen to control the working program. It is a simple and convenient way for unskilled operator, which is cable of operation by the separated Control panel.
Product:
Automatic Vacuum Forming Line

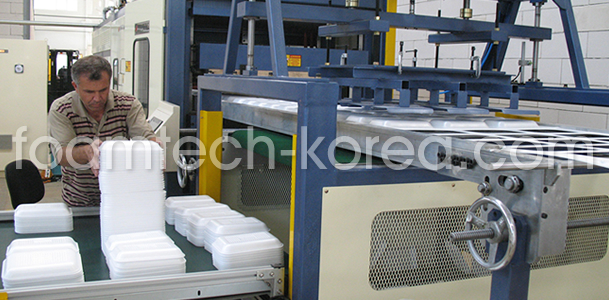

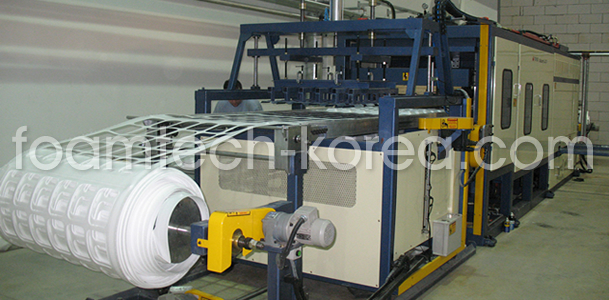

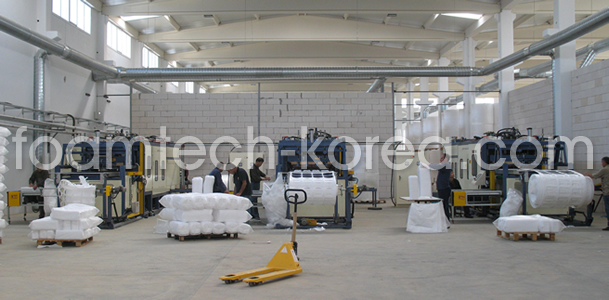

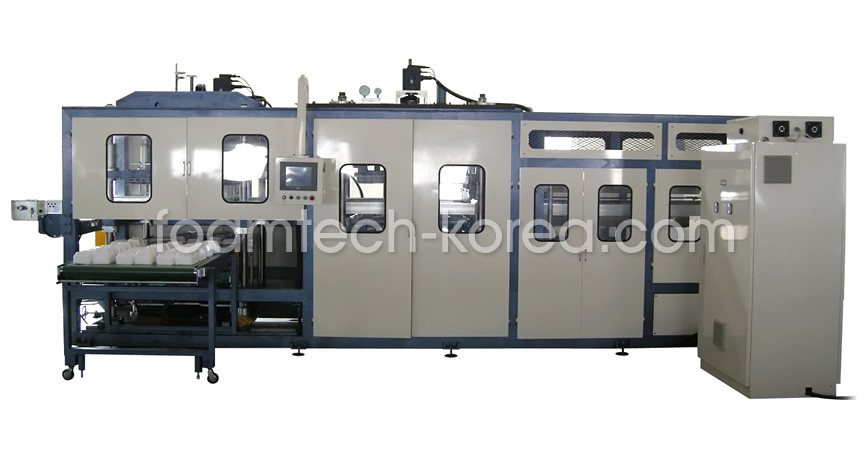

detailed images:
Automatic Vacuum Forming LineAutomatic Vacuum Forming Line Automatic Vacuum Forming LineAutomatic Vacuum Forming Line Automatic Vacuum Forming LineAutomatic Vacuum Forming Line

Applications:
A. Applications Of Product
  • Disposable material for lunch box, bowl, tray, plate etc..
  • Internal cushioning material for food, fruits, cosmetics.
Automatic Vacuum Forming LineAutomatic Vacuum Forming Line Automatic Vacuum Forming LineAutomatic Vacuum Forming Line Automatic Vacuum Forming LineAutomatic Vacuum Forming Line Automatic Vacuum Forming LineAutomatic Vacuum Forming Line Automatic Vacuum Forming LineAutomatic Vacuum Forming Line Automatic Vacuum Forming LineAutomatic Vacuum Forming Line
Specifications:


Model No. RYF-AVF 1000
Forming Area 800 X 600mm, 1000 X 1100mm
Suitable Sheet Foamed PS, PS, PET,PVC, PP, ABS, HIPS etc.
Capacity 900shot/hour, 4.0sec/cycle max. in dry run
Thickness 0.2mm~1.5mm(rigid) & 1mm~3.5mm(foam)
Machine Size 9000mmL X 3500mmW X 1900mmH






Call or Fax Now: Tel: ++82 53 290 7060, Fax: ++82 53 583 7061
or Email: foamtech21c@naver.com, foamtech@foamtech-korea.com
Extruder Korea
